An easily transportable weighbridge. ATP full platform and ATP-1000 with a 1000 mm gap in the middle.
ATP and ATP-1000 pit-pitless transportable weighbridge
Specifications
| Overall height | 420 mm |
| Type | pit or pitless less |
| Driving surface | durbar |
| Dimensions | from 6 to 36m |
| Capacities | 60-80t |
| Structure | Bended plate construction |
| Type of loadcells | Flintec RC 3 30t (optionally other brand loadcells on request) |

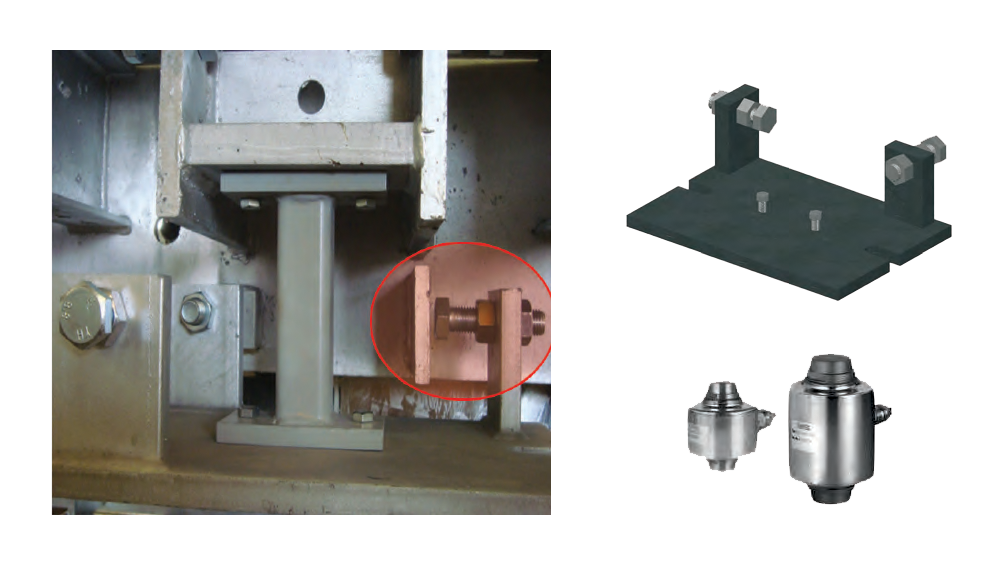

| Loadcells buffering system | Adequate lateral and longitudinal bumper arrangement without the use of mechanical constrainer, check/tie rods, yolk. |
| Type of crane for installation | Any 3t crane |
| Transportation | By normal TIR truck or sea container |
| Below options available on request | - Side rails option - Weighing terminal - Factory pre-mounted loadcells option - Prefabricated Steel Foundation Options: • Steel foundation SF 140 for any compacted ground • SF140 will be factory pre-mounted under the foundation plates in order to be easily installed and transported - Steel Ramps Option - Steel-Concrete ramps option Steel cover, concrete to be poured on site |
